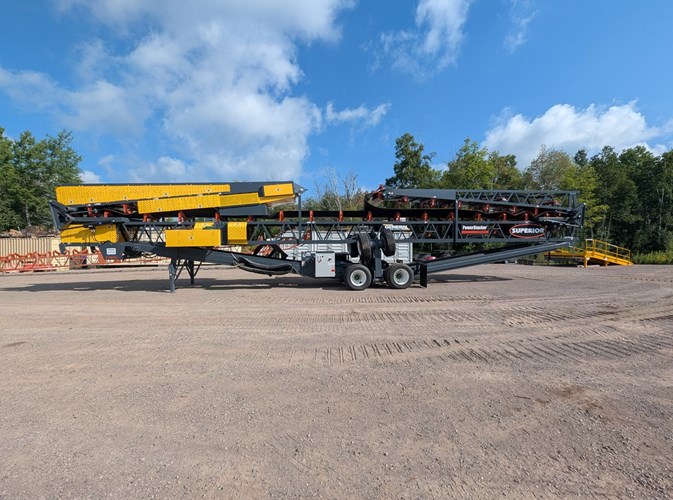

2025 Superior Conveyor - Stacking 42X125PS
Fields with asterisks * are required.
Print This Page
Description
POWERSTACKER CONVEYOR
Inventory ID
E00068300
Serial
2675228
Machine Location
Details
- Inventory ID: E00068300
- Status: On Yard
- Make: Superior
- Model: 42X125PS
- Year: 2025
- Serial#: 2675228
Notes
- SUPERIOR 42" X 125- POWERSTACKER CONVEYOR EQUIPPED AS PER BELOW:
- CONVEYOR FRAME:
- MAIN FRAME: 36" DEEP TRUSS
- CHORD ANGLES: 4" X 3" X 1/4"
- BOTTOM CHORD ANGLES: BOTTOM CHORD UPSIZED BETWEEN PINPOINTS
- LATTICE MEMBERS: 1-3/4" X 1-3/4" X3/16" - DRIVE SPECIFICATIONS:
- DRIVE: CLASS I TANDEM WRAP
- GEAR REDUCER: SHAFT MOUNT
- BACKSTOP: INSTALLED IN REDUCER
- MOTOR: 75 HP TEFC
- V-BELT DRIVE: WITH DRIVE GUARD
- CAPACITY: 1200 STPH OF 100 PCG MATERIAL 25 DEGREE SURCHARGE (90% FINES 10%
SPHERICAL LUMPS 7" MINUS)
- BELT SPEED: 400 FPM
- DRIVE PULLEY: 20" DIAMETER 3/8" HERRINGBONE LAGGED DRUM
- TAIL PULLEY: 16" DIAMETER CEMA CHEVRON WING
- SNUB PULLEY: 20" DIAMTER MD LAGGED WING PULLEY
- HEAD PULLEY: 18DIAMETER PLAIN STEEL DRUM
- SHAFTS: TURNED AND POLISHED
- BEARINGS: INCLUDED:
- TAKE UP: SCREW TYPE - PORTABILITY:
- CONVEYOR SPLICE: HYDRAULIC TOP FOLDING HEAD AND TAIL SECTION WITH INTEGRAL
BELT KEEPER
- UNDERCARRIAGE: HYDRAULIC RAISE WITH 7.5 HP ELECTRIC PUMPING UNIT
- AXLE TYPE: FD40 AXLE
- TRANSPORT AXLE: (8) 11R-22.5 TRANSPORT TIRES WITH BRAKES AND MUD FLAPS
- RADIAL AXLE: (4) 385/65D-22.5 TIRES ON HYDRAULIC OUTRIGGERS POWER TRAVEL
- COMPENSATION LINKAGE: NOT INCLUDED
- RADIAL TRAVEL: (4) HYDRAULIC DRIVEN PLANETARY (ALL WHEEL DRIVE)
- FIFTH WHEEL: FOR ROAD TRAVEL BOLT ON DESIGN
- ANCHOR PIVOT PLATE: MAINTAINS TAIL END DURING RADIAL TRAVEL
- BRAKES: COMPLETE AIR BRAKE PACKAGE
- LIGHTS: BRAKE AND DIRECTIONAL SIGNALS
- MUD FLAPS: INSTALLED BEHIND TRANSPORT WHEELS
- LANDING GEAR: 2 SPEED CRANK-DOWN FOLD UP DESIGN
- TOWING EYE: PINTLE HITCH - CONVEYOR COMPONENTS:
- BELTING: 3-PLY 1/4" X 1/8" 600 PIW
- BELT SPLICE: FACTORY VULCANIZED BELTSPLICE
- SCAPERS: SUPERIOR CLICK TENSIONING EXTERRA PRIMARY BELT SCRAPER
- RETURN CLEANER: (2) SUPERIOR V-PLOW UHMW BLADE
- IDLERS: CEMA C 5" DIA. SEALED FOR LIFE BALL BEARINGS
- IDLER SEAL: SUPERIOR STANDARD SPINGUARD SEAL
- LOAD AREA: 20DEGREE TROUGH STEEL ROLLS 12-16" SPACING
- TROUGH: 35 DEGREE STEEL ROLLS ON 3.5- SPACING
- RETURNS: FLAT STEEL ROLLS ON 10- SPACING
- RADIAL RECEIVING HOPPER: ROCK BOX 5- LONG BOLT ON DESIGN
- RADIAL HOPPER LINER: NOT INCLUDED
- GATHERING TROUGH: 5- LONG WITH ADJUSTABLE RUBBER FLASHING - ADDITIONAL SPECIFICATIONS:
- SIDE GUARDING: SIDE GUARDING UP TO 8-
- VOLTAGE: 480V/3PH/60HZ - 1800 RPM
- CORD HOLDERS: 1 SET BENT PIPE STYLE
- CONTROL PANEL PLATE: BRACKET ONLY FOR PANEL AND HYDRAULIC LEVERS
- PAINT: SUPERIRO CLASS 1 - 1 COAT PRIMER 1 COAT FINISH ENAMEL GRAPHITE GRAY
- GUARD PAINT: YELLOW
- IDLER PAINT: POWDER COATED SUPERIOR ORANGE
- PATENTS: INCLUDES PATENTS
- OWNERS MANUAL: 1 COPY IN ENGLISH INCLUDED FOROPERATION AND MAINTENANCE - - ELECTRICAL SWITCHGEAR WITH 300- OF MAIN POWER CORD
- - GUARDING: FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
MAY NOT MEET ALL LOCAL CODES END USER IS RESPONSIBLE TO HAVE GUARDING
INSPECTED
